| SEGURIDAD | |
|---|---|
| Seguridad de la red | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
| Red de invitados | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| Cifrado WiFi | WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
| HARDWARE | |
|---|---|
| Procesador | 1.2 GHz CPU |

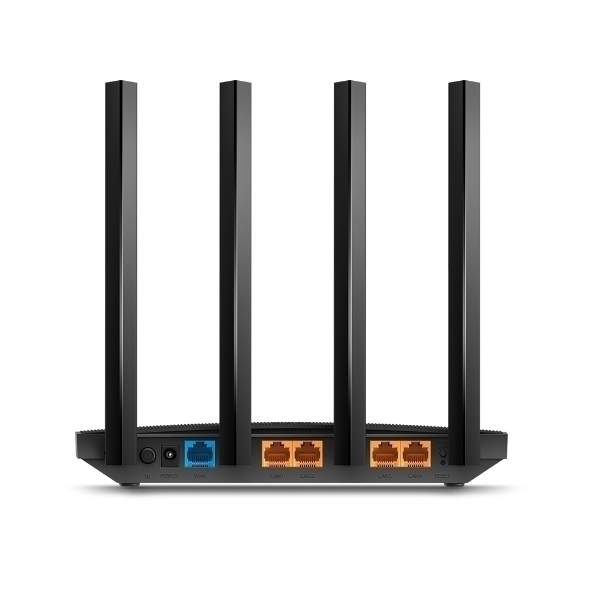

| Puertos ethernet | 1× Gigabit WAN Port 4× Gigabit LAN Ports |
| Botones | WPS/Wi-Fi Button Power On/Off Button Reset Button |
| Energía | US Version 12 V ⎓ 1.5 A EU Version 12 V ⎓ 1 A |
| SOFTWARE | |
|---|---|
| Protocolos | IPv4 IPv6 |
| OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products> |
| Controles parentales | URL Filtering Time Controls |
| Tipos de WAN | Dynamic IP Static IP PPPoE PPTP L2TP |
| Calidad de servicio | QoS by Device |
| Cloud Service | OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link NO-IP DynDNS |
| Gestión | Tether App Webpage Check Web Emulator> |
| OTRO | |
|---|---|
| Requisitos del sistema | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certificaciones | FCC, CE, RoHS |
| Ambiente | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| DATOS DE PRUEBA | |
|---|---|
| Potencia de transmisión WiFi | CE: <20dBm(2.4GHz) <23dBm(5.15GHz~5.25GHz) FCC: <30dBm(2.4GHz & 5GHz) |
| Sensibilidad de recepción WiFi | 5GHz: 11a 6Mbps:-98dBm, 11a 54Mbps:-78dBm 11ac VHT20_MCS0:-98dBm, 11ac VHT20_MCS8:-72dBm 11ac VHT40_MCS0:-92dBm, 11ac VHT40_MCS9:-68dBm 11ac VHT80_MCS0:-89dBm, 11ac VHT80_MCS9:-64dBm 2.4GHz: 11g 6Mbps:-97dBm, 11a 54Mbps:-77dBm 11n VHT20_MCS0:-97dBm, 11n VHT20_MCS8:-72dBm 11n VHT40_MCS0:-92dBm, 11n VHT40_MCS9:-67dBm |
| FÍSICO | |
|---|---|
| Dimensiones (Al x An x Pr) | 8.5 × 4.6 × 1.26 in (215 × 117 × 32 mm) |

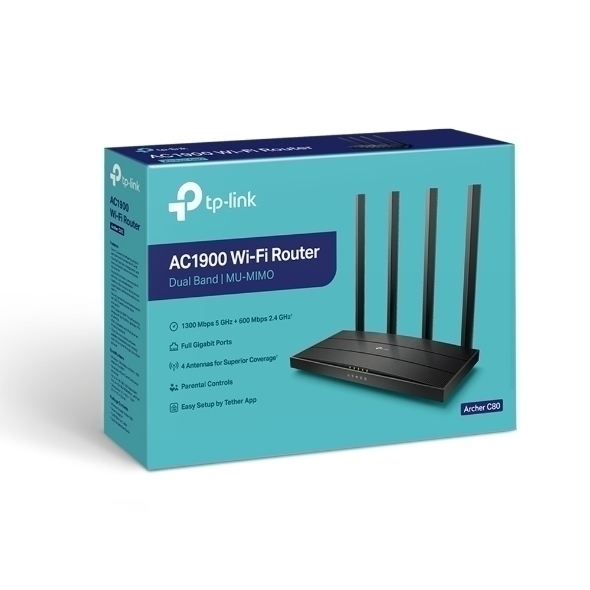

| contenidos del paquete | Wi-Fi Router Archer C80 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
| INALAMBRICO | |
|---|---|
| Estándares | Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
| Velocidad WiFi | AC1900 5 GHz: 1300 Mbps (802.11ac) 2.4 GHz: 600 Mbps (802.11n) |

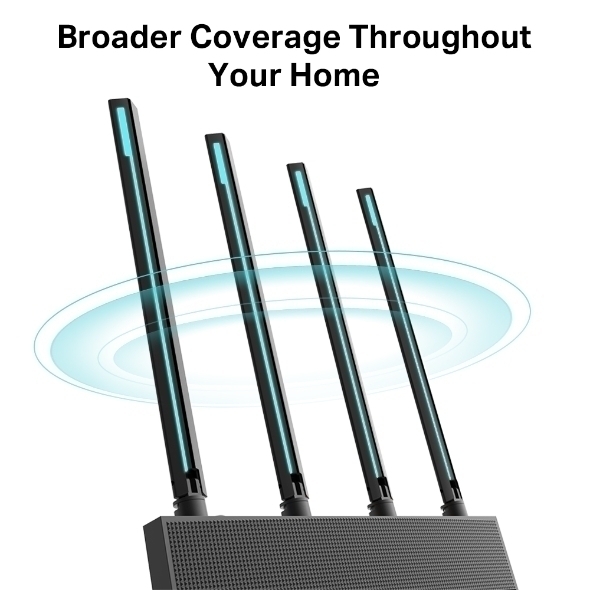

| Rango WiFi | 3 Bedroom Houses 4× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range |

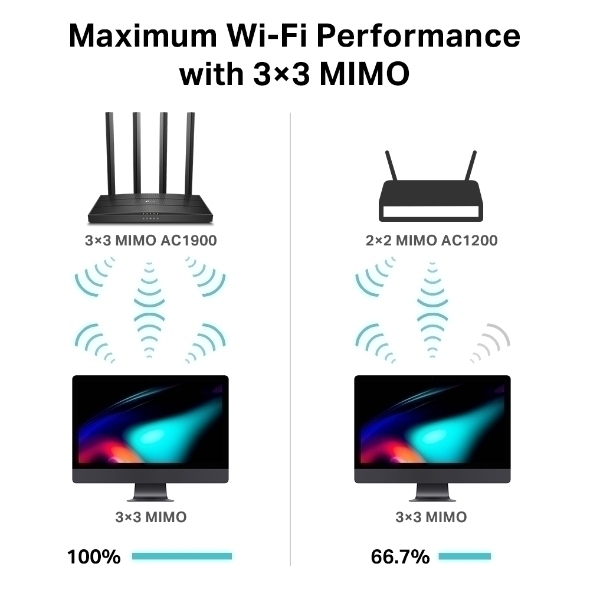

| Capacidad WiFi | Medium Dual-Band Allocate devices to different bands for optimal performance 3×3 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients Airtime Fairness Improves network efficiency by limiting excessive occupation |
| Modos de trabajo | Router Mode Access Point Mode |
